Compressor & Blower
Compressor & Blower
We design whole compressed air systems consisting of compressor, blower as well as ancillary equipment such as pre coolers, dryers, filters, receiver tanks, closed cooling systems, chilled water systems as per the client's requirements. For the optimum performance of the compressed air system, the package integration is important. Our major experiences are focused on integrating compressors with a structural common skid, dryer & filters, receiver tank, interconnecting piping & valves, tubing, instruments, electric and control system (PLC). All systems complete assembled, integrated and tested in our shop. Specific performance, size and requirements of products are available upon request.
Applicable Types
- Centrifugal Compressor
- Rotary Screw Compressor (Oil Free / Oil Injection)
- Reciprocating Compressor (Oil Free / Oil Injection)
- Blowers (Centrifugal / Positive Displacement Type)
- Engine Driven Compressor
Applications
- Instrument & Utility Air Compressor
- Bulk Air Compressor for Drilling Unit
- Breathing Air Compressor
- Starting Air Compressor
- Ventilation Air Blower
- Aeration Blower for Water Treatment
Key Features
- Applicable in both Offshore & Onshore
- Carbon steel / stainless steel for pressure vessel and piping
- Electric motor available LV, MV and HV(up to 11kV)
- Air Cooled / Water Cooled
- Containerized units
- Compliance to NORSOK, ATEX, CE, API, IECEx, PED
- PLC Control / Microprocessor based control
- ATEX, suitable for Zone 1 / Zone 2 condition
- Tropicalization ambient temperature up to 55°C
- Winterization ambient temperature down to -50°C
- Painting (external / internal) as per required specifications
- ASME or Classification approval
- Specific flow and pressure
Reference Applications / Specifications
Skid Mounted Instrument Air Compressor & Dryer Package
- Application : Instrument Air compressor with dryer for Offshore (FPU)
- Operating Discharge Pressure : 8.5 barg at skid edge
- Compressor Type : Air Cooled Oil Free Screw Compressor
- Construction Feature : 3 Compressors on common base skid, Wet Air Receiver
and 2 Heatless Desiccant Air dryers on common base skid - Certificates : U-stamp for pressure vessels, DNV for wet air receiver,
ATEX certificates for all instrumentations. - Material : Pressure vessel, Piping and base frame in Carbon Steel and
Quiet Enclosure for compressor in Stainless Steel 316L - Controlled by dedicated LCP : PLC based controller which is configured
as redundant CPU, Power Supply and Communication - The LCP approved with ATEX certificate suitable for use in
ZONE 2 hazardous location (Ex 'nA', 'e' IIB T6)

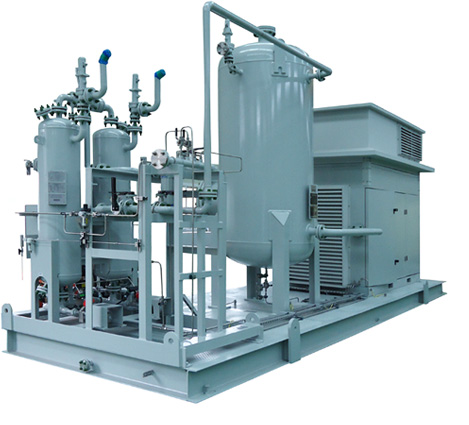

Skid Mounted Nitrogen Feed Air Compressor & Dryer Package
- Application : Nitrogen Feed Air compressor with dryer for Offshore (FPU)
- Operating Discharge Pressure : 10 barg
- Compressor Type : Water Cooled Oil Free Screw Compressor
- Construction Feature : 1 Compressor, Wet Air Receiver and Heatless
Desiccant Air dryer on common base skid - Certificates : DNV + BKI dual class
- Controlled by dedicated UCP : Redundant PLC system
(CPU, Power supply, Communication)
HART Multiplexer for interfacing with ICSS
Air Compressor & Dryer Package
- Application : Startup Air Compressor Package for LNG Plant
- Operating Discharge Pressure : 10 barg
- Compressor Type : Air Cooled Oil Free Screw Compressor
- Construction Feature : 1 Compressor, Wet Air Receiver and Heatless
Desiccant Air dryer on common base skid - Applied Codes : ASME Sec. VIII Div.1 for Pressure Vessel
- Skid Size : 8200L x 2400W x 3900H mm
- Pressure vessel & Piping material : Carbon Steel
Instrument Air Compressor
- Application : Instrument Air Compressor (Onshore Refinery Plant)
- Operating Discharge Pressure : 10.5 barg
- Compressor Type : Water Cooled Oil Free Screw Compressor
- Construction Feature : API 619 4th Edition
- Lube Oil System : 91/368EEC, 98/37/EEC (Machines),
ASME Sec. VIII Div.1 (Pressure Equipment) - Pressure – Relieving system:
- - API RP 520 Part I - Design of pressure relieving system
- - API RP 520 Part II - Installation of pressure relieving system
- - API 521 - Pressure Relieving and De-pressuring Systems
- Electric Motor : 300 kW, IP65, II2G Ex ‘de’ IIC
- Junction box : GRP, IP66 Ex ‘e’ IIC T4
- Local Pushbutton Station : GRP, IP66, Ex ‘de’ IIC T4
- Controlled by DCS : functional control logic integrated into the DCS
Skid Mounted Bulk / Service Air Compressed Air System
- Application : Bulk & Service Air for Offshore Drilling Platform
- Construction : 3 base skids catered Two sets of Oil Free Rotary
Screw Compressors on Skid, One set of Wet Receiver Tank with Two
sets of Desiccant Air Dryers on Skid and Three Sets of Dry Receiver
Tank on Common Skid - Operating Pressure : 10.5 barg
- Electric Motor : 150 kW, Ex ‘nA’, IP 55, Class1/ Division 2 /
Gas Group C & D / T3 Classified - UCP : PLC Based Unit Control Panel with HMI system
- Enclosure : IP 55 Epoxy powder coated mild sheet steel Enclosure
- Junction Box : ATEX Certified (Ex II 2G Ex ‘d’ IIB), IP 66
High Ambient Air Compressor
- Application : Instrument Air Compressor (Onshore)
- Ambient Temperature : Extreme Condition of -3°C ~ 55°C
- Discharge Pressure : 8 barg
- Compressor Type : Air Cooled Oil Free Screw
(Cooler Applied Heresite Protective Coating) - Construction Feature : API 619 4th Edition
- Local Pushbutton Station : 316LSS, IP66, Ex ‘de’ IIC T4
- Controlled by dedicated UCP : Fully redundant PLC system
(CPU, Power supply, Communication and I/O)
HART Multiplexer for interfacing with Plant AMS
Water Cooled Centrifugal Air Compressor
75dBA Quiet Enclosure
- Application : Instrument Air for Topside Offshore Platform
- Applied Code : NORSOK, CE Marking (MD– 2006/42/EC, PED-1997/23/EC), ATEX-1994/9/EC
- Discharge Pressure : 11 barg
- Sound Level : 75 dBA
- Coating System : TSA Coating on Steel Structure & Compressor Casing
- Air Cooler : Water Cooled 316L Stainless Steel Fin Type
- Piping System : Super Duplex Stainless Steel and 316 Stainless Steel for Air, 316 Stainless Steel for Water and Oil System
- Construction Feature : API 672 4th Edition, EN 13445
- Oil System : API 614, 5th Edition, Chapter 3
- Junction Box : IP 66, Ex II 2 G Ex ia IIC T5 Gb
- Control Panel : RIO Cabinet Class 1 Control System, Fiber Optic wired to Platform SAS (Safety and Automation System), Ex II 3 G Ex d e mb nA [ia] IIC T3
Air Cooled Centrifugal Air Compressor
75dBA Quiet Enclosure
- Application : Emergency Air for Topside Offshore Platform
- Applied Code : NORSOK, CE Marking (MD– 2006/42/EC, PED-1997/23/EC), ATEX-1994/9/EC
- Discharge Pressure : 11 barg
- Sound Level : 75 dBA
- Coating System : TSA Coating on Steel Structure & Compressor Casing
- Air Cooler : Air Cooled 316L Stainless Steel Fin Type
- Piping System : Super Duplex Stainless Steel and 316 Stainless Steel for Air, 316 Stainless Steel for Water and Oil System
- Construction Feature : API 672 4th Edition, EN 13445
- Oil System : API 614, 5th Edition, Chapter 3
- Junction Box : IP 66, Ex II 2 G Ex ia IIC T5 Gb
- Control Panel : RIO Cabinet Class 1 Control System, Fiber Optic wired to Platform SAS (Safety and Automation System), Ex II 3 G Ex d e mb nA [ia] IIC T3
Skid Mounted Reciprocating Air Compressor Package
- Application : Instrument / Utility Air for Offshore Platform
Construction : Two sets of Reciprocating Air Compressor Packages
on Common Skid - Air Cooled Water Cooler Package (Closed Cooling System) :
Max. 52.4 °C inlet / 40 °C outlet water temperature, 104,000 kcal/hr - Operating Pressure: 13 barg
- Electric Motor: 150 kW, Ex ‘nA’, IP 55
- PLC Based Local Control Panel: ATEX Certified (Ex II 2G Ex ‘d’ IIB),
IP 66 Epoxy coated copper free Aluminum Alloy Enclosure - Junction Box : ATEX Certified (Ex II 1G Ex ‘ia’ IIC, T6), IP 66
Breathing Air Compressor
- Application : Breathing Air for Offshore Platform
- Construction : Two sets of Reciprocating Air Compressor,
Two sets of Air Receiver Tank Integrated on Common Skid - Operating Pressure : 175 barg
- Electric Motor : 15 kW, Ex ‘nA’, IP 55
- PLC Based Unit Control Panel with HMI system : Located in Safe Area,
IP 55 Epoxy powder Coated mild sheet steel Enclosure - Junction Box : ATEX Certified (Ex II 2G Ex ‘d’ IIB), IP 66 Epoxy coated
Starting Air Compressor
- Application : Starting Air for Offshore Platform
Construction : One set of Air Compressor & One set of Air Receiver
Tank on Common Skid - Operating Pressure: 18 barg
- Electric Motor: 11 kW, Ex ‘nA’, IP 55
- PLC Based Local Control Panel : ATEX Certified (Ex II 2G Ex ‘d’ IIB),
IP 66 Epoxy coated copper free Aluminum Alloy Enclosure
Winterized Air Compressor
- Application : Instrument Air
- Design & Construction : Winterization -28 °C Ambient Temperature
2 Oil Free Rotary Screw Air Compressors on Common Base Skid
Fully Quiet Enclosed with Heaters inside Enclosure - Working Pressure : 9 barg
- Control : PLC Based Unit Control
- Location : Outdoor
Multistage Centrifugal Air Blower
- Application : Aeration Air for Water Treatment
- Design Flow : 15,500 Nm3/hr
- Working Pressure : 1.79 bara
- Location : Outdoor
Multistage Centrifugal Air Blower
- Application : Ventilation & Breathing Air for FLNG Offshore
- Blower : 105 kW, 10,000 Nm3/hr at 0.25 barg
- Air Cooler : Shell and Tube in SS316
- Air Heater : 50 kW / 690 V, Thyristor module operation by control panel, casing in SS316
- Control : Redundant PLC with HMI touch panel
Hot Air Heater Blower (Portable Explosion-proof)
- Application : Drying control room of off drilling platform
- Heater Power : 23.1 kW / 690 V
- Air Delivery : 5,000 m3/hr
- Heat Dissipation : 78,850 BTU/hr
- Electric Construction :
Blower Motor - Ex d IIC T4
Transformer - 690VAC to 400VAC, 3 Ph / 50 Hz
Enclosure - Ex d with cable gland - Location : Outdoor
